Affordable Price Solar Panel Silicone Sealant for PV Module Frame

FOB Reference Price:Get Latest Price
  • 1000 - 4999 Pieces
    US $1.50
  • 5000 - 9999 Pieces
    US $1.40
  • >=10000 Pieces
    US $1.30
Report Suspicious Activity
Overview
Quick Details
CAS No.:
7085-85-0
Other Names:
Solar module sealant
MF:
Mixture
EINECS No.:
230-391-5
Place of Origin:
Shanghai, China (Mainland)
Classification:
Other Adhesives
Main Raw Material:
Silicone
Usage:
Construction, Solar module
Brand Name:
Siway
Model Number:
SV 709
Type:
One Component, one-component silicone sealant
Product name:
solar panels silicone sealant
Application:
solar module,junction box
Keywords:
solar panels silicone sealant
Appearance:
paste
Color:
White/Black/Grey
Package:
300ml/400ml
Net Weight:
420g/550g
Shelf life:
12 Months
Certificate:
SGS,TUV,UL
SupplyAbility
SupplyAbility:
20000 Piece/Pieces per Week of solar module silicone sealant
Packaging & Delivery
Packaging Details
300ml/400ml
Port
Shanghai
Lead Time :
Shipped in 7 days after payment
Product Description

SV 709 is oxime type curing, one component,strong mechanical performance after curing. It  has fast skin forming time and easy-to-use. SV 709 has already been  successfully applied in solar industy. It can make skin formed in a few minutes and achieve enough mechanical property to meet the requirement of the solar production line. After cured, SV 709 can provide long-term protection to solar power.

Advantage
1. good sealing, the aluminum, glass, TPT / TPE back material, junction box plastic PPO / PA have good adhesion;
2. a unique curing system, measured by high temperature and humidity ring, with all types of EVA have good compatibility;
3. the unique rheological system, the colloid of the fine, good resistance to deformation ability;
4. flame retardant performance to UL 94-V0 the highest level;
5. in full compliance with the EU ROHS environmental directive requirements, SGS-related test reports.
6.Typical applications: Solar panel bonding, PV module aluminum frame sealing and junction box and TPT / TPE back film adhesive seal.


Parameters

Test Item
Unit
Result
Mechanical Properties after Cure
Density
g/ml
1.41
Tensile strength
Mpa
2.7
Elongation
%
550
Hardness, shore A
point
35
Lap shear (AI/AI) unprimed adhesion
Mpa
1.8
Electronic  Properties after Cure
Dielectric strength
KV/mm
22
Volume resistivity
Ohm,cm
10E14
Dielectric constant
@50HZ
3.2
Dissipation factor
@50HZ
0.0031
After aged under 85℃&85%RH for 2000hours
Tensile strength
Mpa
1.8
Elongation
%
370
Hardness, shore A
point
40
*******Test condition :23±2℃,50±2%RH******

Where to Use

Production Line
Testing A
Equipment Name
Electric thermostaticdrying oven
Testing purposes
Test the volatilization of silicone sealant materials and silicone sealant products
Testing B
Equipment Name
Sealant Compatibility Test Chamber
Testing purposes
Test the adhesion of the silicone sealant to the substrate
Testing C
Equipment Name
UV weathering test machine
Testing purposes
Test the weather resistance of silicone sealants in simulated natural environments
Testing D
Equipment Name
Tensile testing machine
Testing purposes
Detection of tensile strength of sealant adhesive, bond failure area, the maximum tensile strength at a certain temperature elongation
Testing E
Equipment Name
constant temperature and humidity device
Testing purposes
Test the weather resistance of silicone sealant
Testing F
Equipment Name
high temperature oven
Testing purposes
This experiment simulates the high-temperature environment, accelerates the thermal oxidation of the sealant in the air, so as to determine the high-temperature aging resistance of the sealant
Packing & Delivery

300ml/cartridge*24cartridges/carton, carton size:30cm*21cm*24cm

400ml/sausage*20sausages/carton, carton size:35cm*21cm*25cm

Factory

Our factory is located in Quzhou, Zhejiang High-tech Industrial Park, covers an area of 330 acres, more than 500 employees, including college education more than 200 people, we are new fluorine-silicon industry in Zhejiang Province technological innovation pilot units.

Company Information

 Shanghai Siway Decoration Materials Co., Ltd. Located in Shanghai China. The company has 13 years of silicone sealant. Main products are structural silicone sealant, stone silicone sealant, weathering silicone sealant, two-component silicone sealant and other products. Our company has accumulated a large number of core technologies. Products are sold in more than 30 countries.

WELCOME TO VISIT US --- SIWAY

Big smile on Majesties face. Silicone sealant in your home, Money rushes to you.

More Professional, More Patient, More Responsibility.

Our Siway team always try our best to help all of you.


What can we do for you?

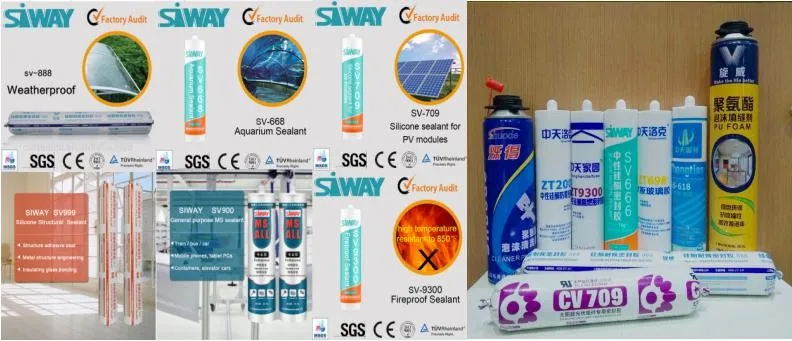

We are silicone sealant, silicone sealant for curtain wall , silicone sealant for door and window suppliers . Products are widely used in construction, curtain walls, doors and windows and interior decoration, electronics and other fields.


We can provide solutions for different use cases, we have variety of silicone sealant, foam sealant, providing OEM services to meet the procurement needs of different countries and regions.

1.International sales service:
We have professional international sales team who can supply you service instantly.

2. Engineers:
Engineers with 15 years experience help you pick out the correct silicone sealant for certain project and material.

3. Quality Control :
Control the condition of each step in silicon sealant process

Exhibition
Test&Certification

We have the most professional R&D team for our amazing Siway silicone sealant. Every step will be checked and tested again and again.

Supplier Assessment Certificate


ISO9001


UL


Contact us
My Dear Friend,


Welcome to vist our company and willing to contact us if you need any further support before or after sales:
Tel: +86 21 37682288
Whatsapp: +86 15021221469

Email: sales3@curtaincn.com

Please contact us for Big surprise :) ( Only limited for first 10 enquiry people each day on Beijing time)
